Axial load bearing carrying capacity

Axial load bearing carrying capacity for standard Extreme Bearings with and adapter sleeve

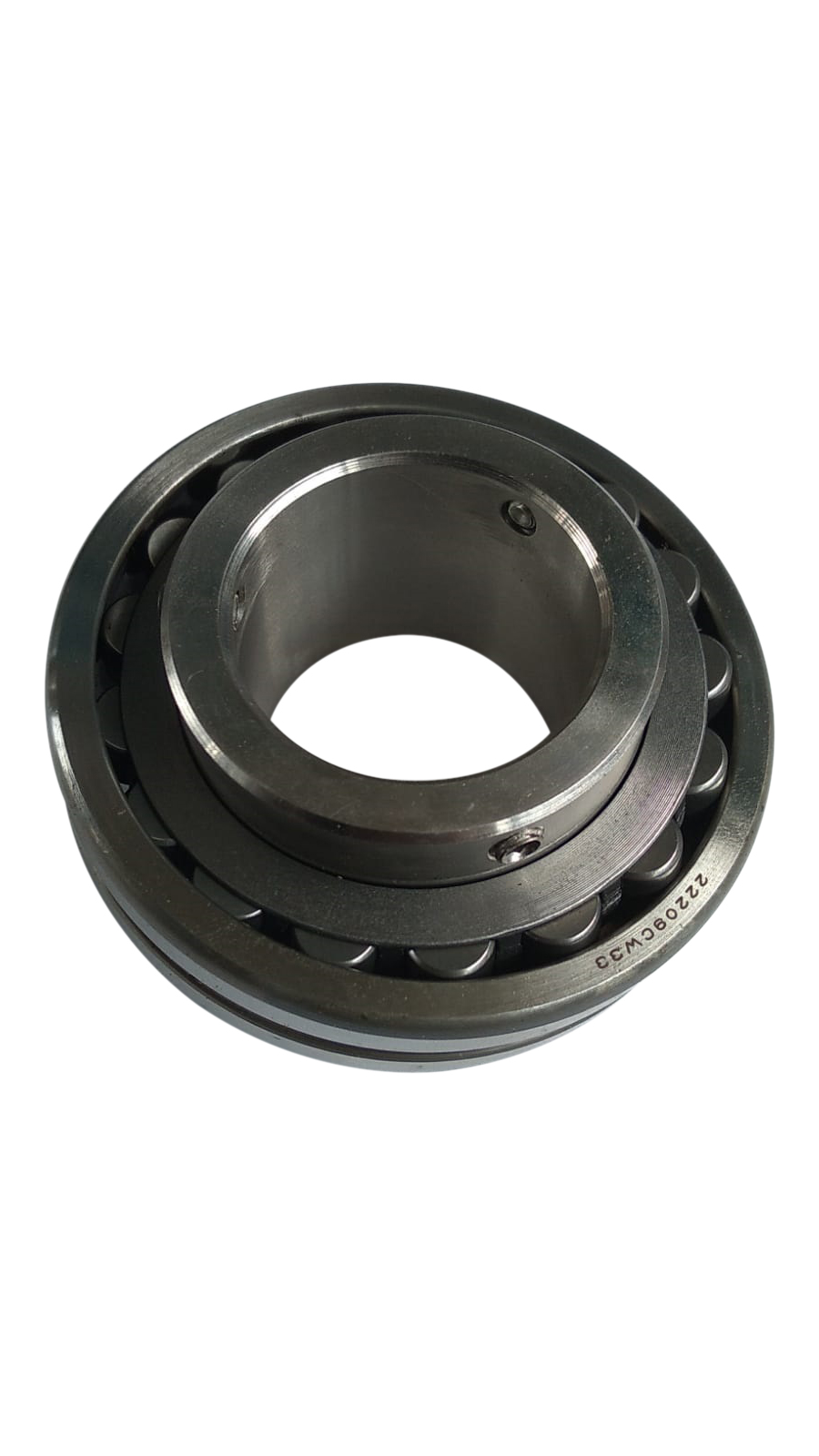

Double row spherical roller bearings have an extremely high load carrying capacity, tolerating both radial and axial loads in both directions. A standard Extreme Bearing is equipped with this kind of bearing and locked on the shaft  by using an adapter sleeve. When occur a axial load on the shaft mounted by a standard Extreme Bearing is the maximum  load, the load that can be hold by the adapter sleeve.

Based on practical experience can be made a approximate calculation of the axial load which can be kept by the adapter sleeve, by using the a rule of thumb :

Fap = 0,003 · B · d
Fap = maximum permissible axial load, kN
B = bearing width, mm
d = bearing bore diameter, mm

Explanation axial load on a bearing uni

For heavier loads

Extreme Bearing provide two more mounting options to handle more axial forces, depends from which direction the load is.

  • When the axial force is coming from the back side fot the bearing unit, we use a DR-ring to bring the force over straight on the bearing itself.
  • When the force is coming from the cover side of the bearing unit, we use a CV-Busing in a sphircal roller bearing with cylindrical bore to bring the force straight on the bearing itself.

The axial load depends on the radial load and how the load occur, impact or continuous load, temperature, speed and etcetera. It is quite complicated to made this calculation. Please feel free to contact us with your questions.

Based on practical experience can be made a approximate calculation of the axial load, by using the a rule of thumb:

0,5 of the radial load is the permised axial load.

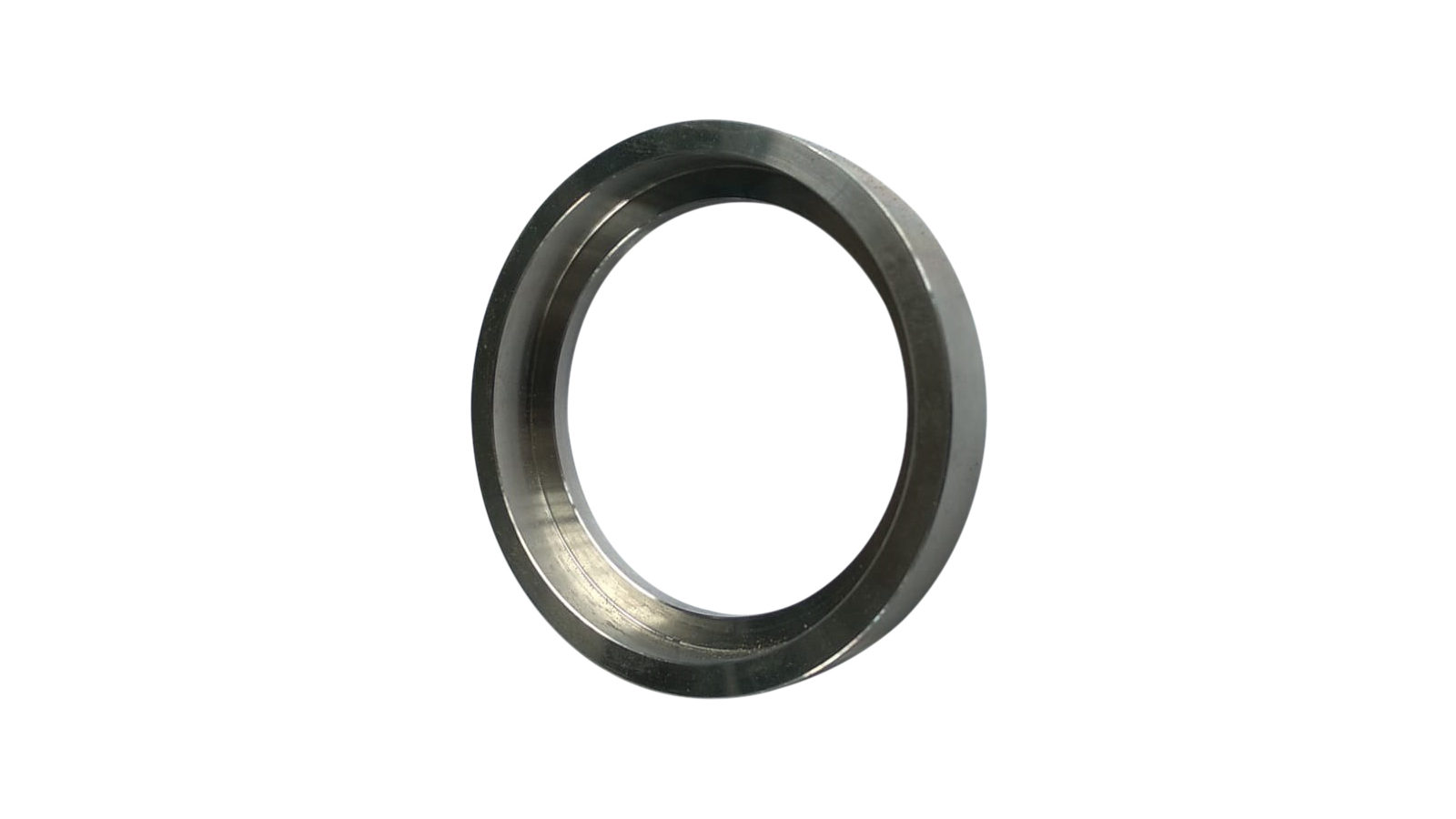

DR-ring

When you need a heavier load than can be keep on a adapter clamping force than you need a DR-ring to bring the force over straight on the bearing itself.

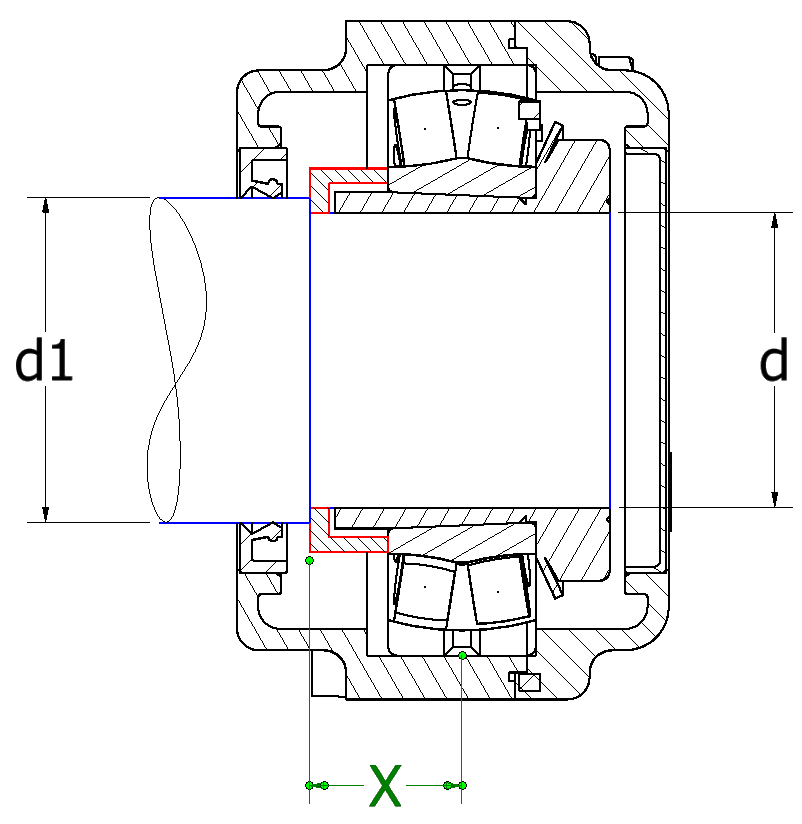

Diameter d1 is up to 60mm, 5mm thicker than diameter d
Diameter d1 is from 65mm, 10mm thicker than diameter d

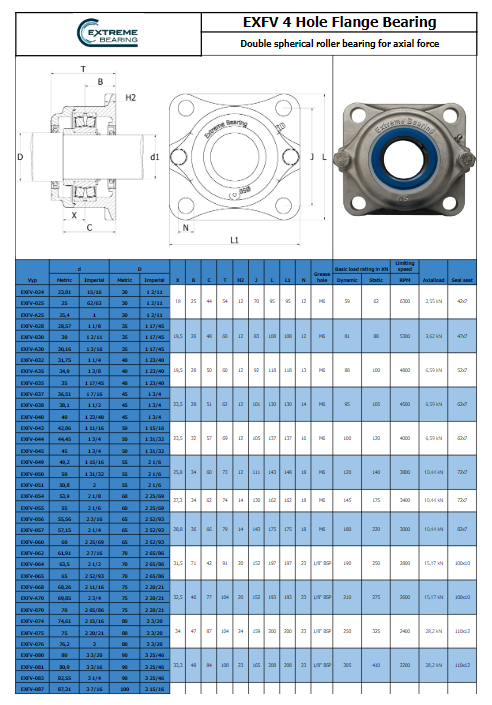

Stainless steel flange bearing with axial load carrying capacity
Part Number d d1 X Axial load
DR025 25 30 17 2,55 kN
DR030 30 35 18 3,62 kN
DR035 35 40 20 6,59 kN
DR040 40 45 24 6,59 kN
DR045 45 50 24 6,59 kN
DR050 50 55 25 10,44 kN
DR055 55 60 26 10,44 kN
DR060 60 65 27 10,44 kN
DR065 65 75 32 15,17 kN
DR070 70 80 32 15,17 kN
DR075 75 85 33 28,2 kN
DR080 80 90 31 28,2 kN
DR085 85 95 33 28,2 kN
DR090 90 100 35 44 kN
DR100 100 110 36 44 kN



CV-Bushing

When you need a heavier load than can be keep on a adapter clamping force and the force direction is coming from the cover side than you need a CV-bushing to bring the force over straight on the bearing itself.

Diameter d1 is up to 60mm, 5mm thicker than diameter d
Diameter d1 is from 65mm, 10mm thicker than diameter d

A smaller diameter d is possible on special request

Juiste tekening
Part Number d d1 X
CV025 25 30 18
CV030 30 35 21
CV035 35 40 22
CV040 40 45 23
CV045 45 50 24
CV050 50 55 25
CV055 55 60 27
CV060 60 65 29
CV065 65 75 30
CV070 70 80 34
CV075 75 85 36
CV080 80 90 38
CV085 85 95 41
CV090 90 100 43
CV100 100 110 48

Trust bearing for huge axial loads

When the loads are not sufficiently, please explore the EXV thrust bearing units
